CHAIPER ELECTRONIC LIMITED

　

SPECIFICATION OF CE60BVK

Nominal Voltage		1.2V
Nominal Capacity ( mAh )		60 mAh
Charging Life		Over 500 times
Diameter		15.1±0.2mm
Height		6.2±0.2mm
Charge	Standard		6mA x 14 hrs
Discharge	Standard		12mA x 5 hrs
Ambient Temperature	Charge	Standard	0° -- 45°C
		Quick	0° -- 40°C
	Discharges		-20° -- 65°C
	Storage		-20° -- 45°C

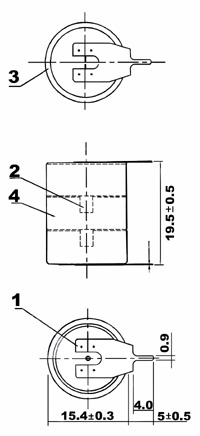

Diagram of CE60BVK

1

　

Lead Plate

　

2

　

Connection Tab

　

3

　

Sleeve

　

4

　

Cells

　

Nickel Cadmium Batteries
Models	Voltage	Capacitor(mAh)	Diameters	Height	Current	Time
CE280BVK	1.2	280	25.10	8.60	28	14
CE170BVK	1.2	170	25.10	6.50	17	14
CE100BVK	1.2	100	15.10	7.60	10	14
CE60BVK	1.2	60	15.10	6.20	6	14
