Electrical Characteristics

Standard Resistance Range : 20 to 2 MW

Resistance tolerance :  ± 20% std

Terminal Resistance : 1% or 2 ohms Max

Contact resistance variation : CRV 1.0% or 3W

Dielectric Strength :

Sea level …………… 900

80,000 Ft …………… 350 vac

Insulation resistance : 500vdc. 1G W

Adjustment Angel : 240°C

Adjustability

Voltage : ±0.05%

Resistance : ±0.15%

Resolution : Infinite

Environment Characteristics

Rated Power (300V Max ) 0.5W @ 70°C   0W @ 150°C

Temperature Range -55°C to +125°C, TCR ±100ppm/°C

Vibration : 30G ( 1% DTR; 1% DVR )

Seal Test : 85°C Fluorinert

Humidity : MIL-STD-202 Method 103

96hours ( 2%D TR, 10 M W IR )

Load Life : 1,000hours 0.5W @ 70°C

(3% DTR; 3% or 3W whichever is greater , CRV)

Rotational Life : 200 cycles (4% DTR; 3% or 3W whichever is greater , CRV)

Shock : 100G ( 1% DTR; 1% DVR )

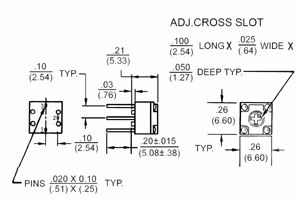

Physical Characteristics

Mechanical Angle : 270°C nom.

Torque : 3.0oz-in.max.

Stop Strength : 8.0 oz-in.min.

Terminals : Solderable pins

Weight : 0.02 oz.

Standard Packaging : 50pcs . Per tube .
